10. July 2026

NEW SHAPE:

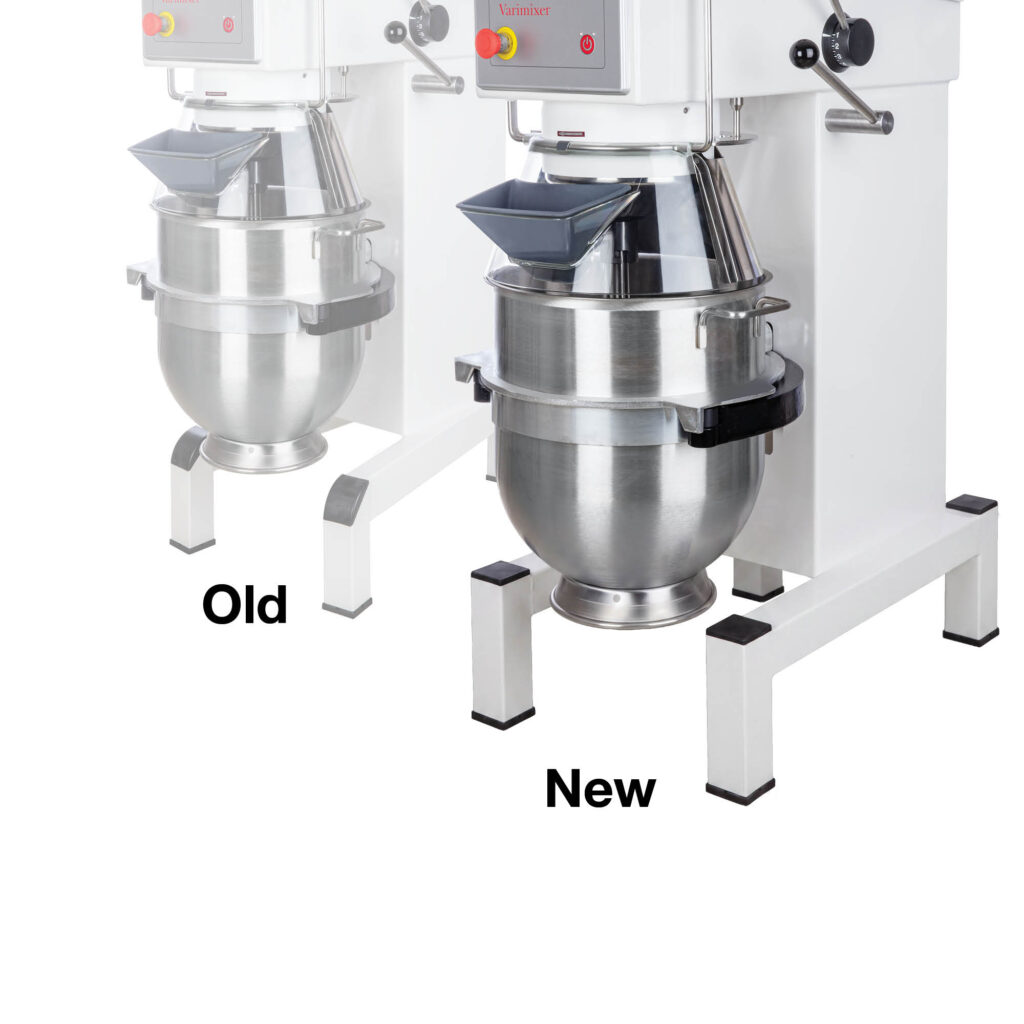

Standardization of knee and foot design across AR30, AR40 and AR60 variants

Improved component quality through a revised design and reduced part variation by standardizing the knee and foot assemblies across the AR product range.

Affected parts:

Knees, feet and spacer blocks used on AR30, AR40 and AR60 stands. The design is standardized across all stand variants. Related spare part kits and service kits have been established with new item numbers to support both legacy and new designs

Affected sales products:

The previous products AR31-213ZB and AR61-213ZB are replaced by AR31-212.1ZB as part of the standardization of the knee and and foot design, but all three numbers can be bought as spare parts.

Last serial numbers before change:

Model	SN Number
M030	3000000034
M030A-W-400N1-01	3000500013
M030A-S-400N1S-01	3000800001
V30	3000900003
M040	4000000074
M040A-W-400N1-01	4000100063
M040A-W-400N1S-01	4000200003
M040A-S-400N1-01	4000300004
M040A-S-400N1S-01	4000400001
M040AP-W-400N1-01	4000500004
V40-3	4000500005
V40-1	4000600005
AR40PH-400V-3-50HZ	4000700009

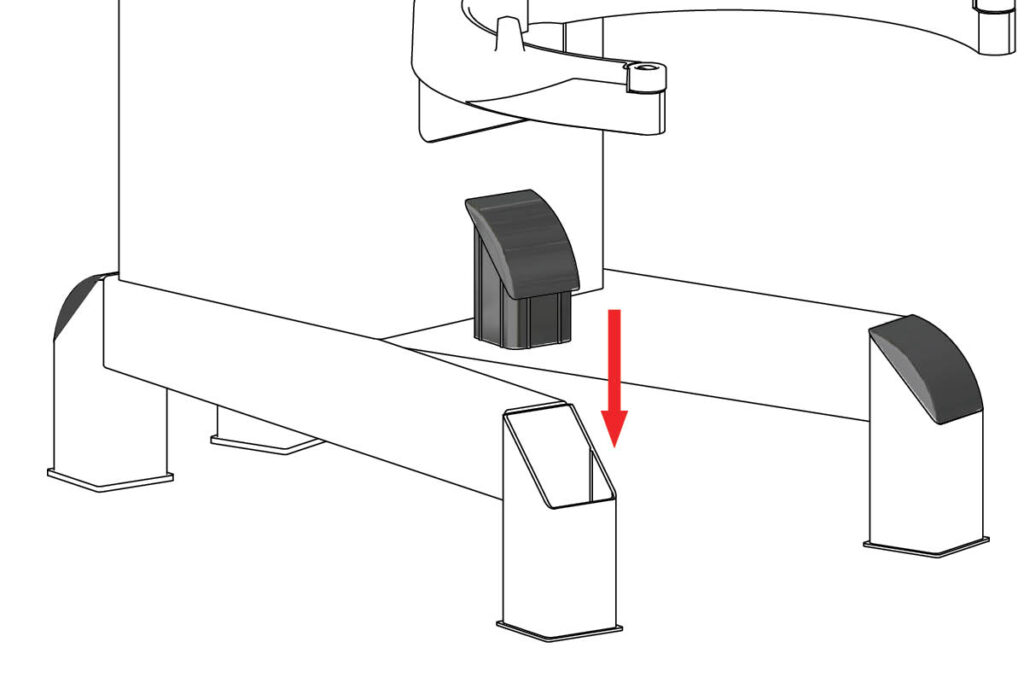

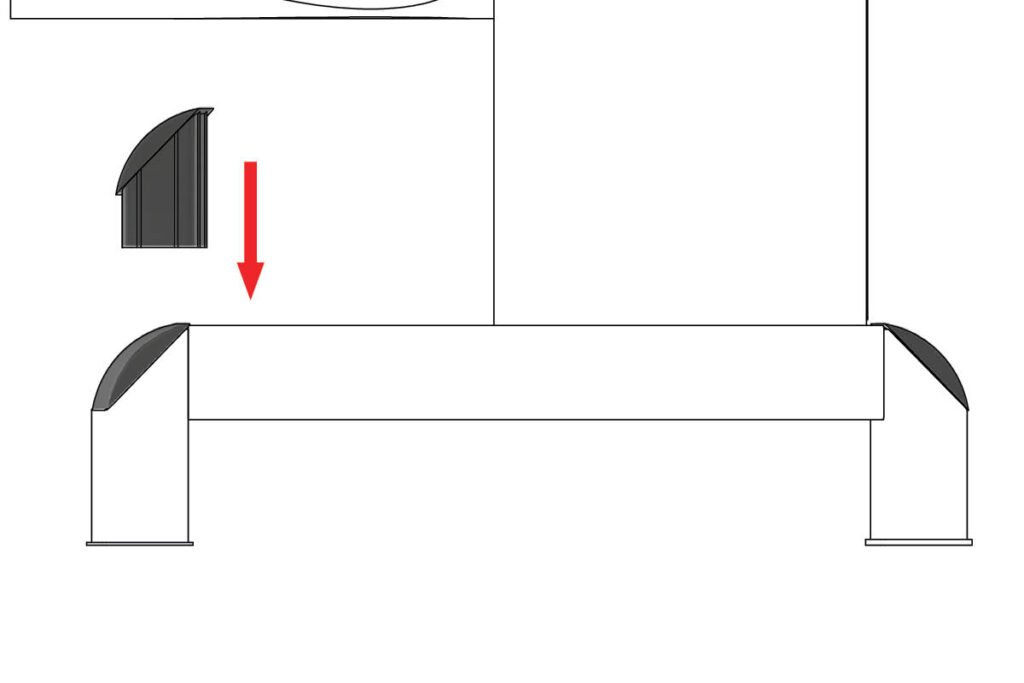

Old version

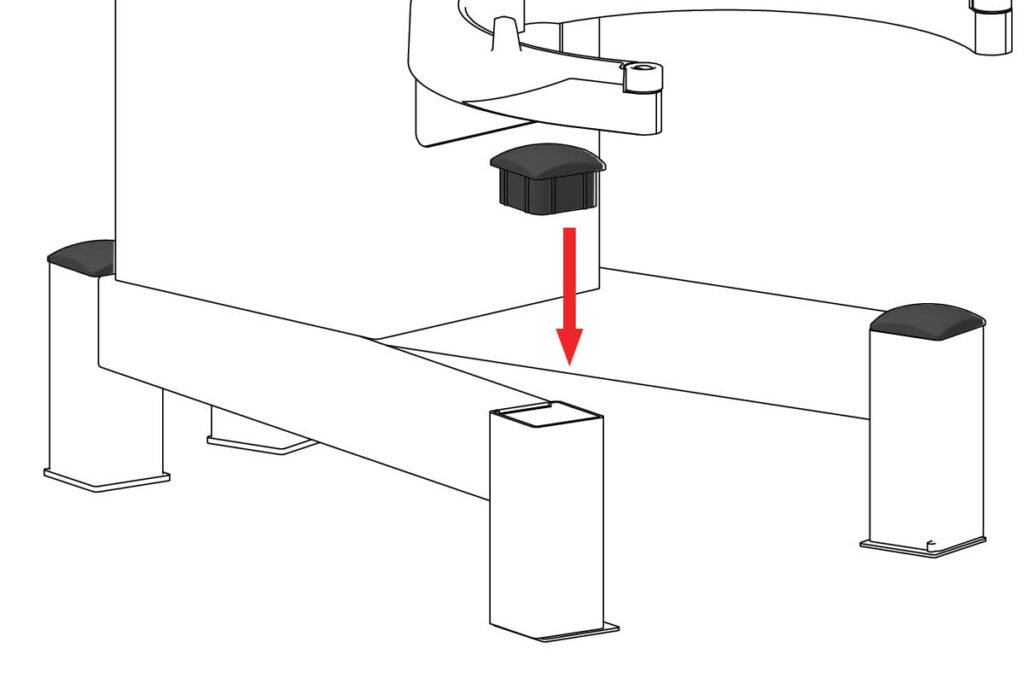

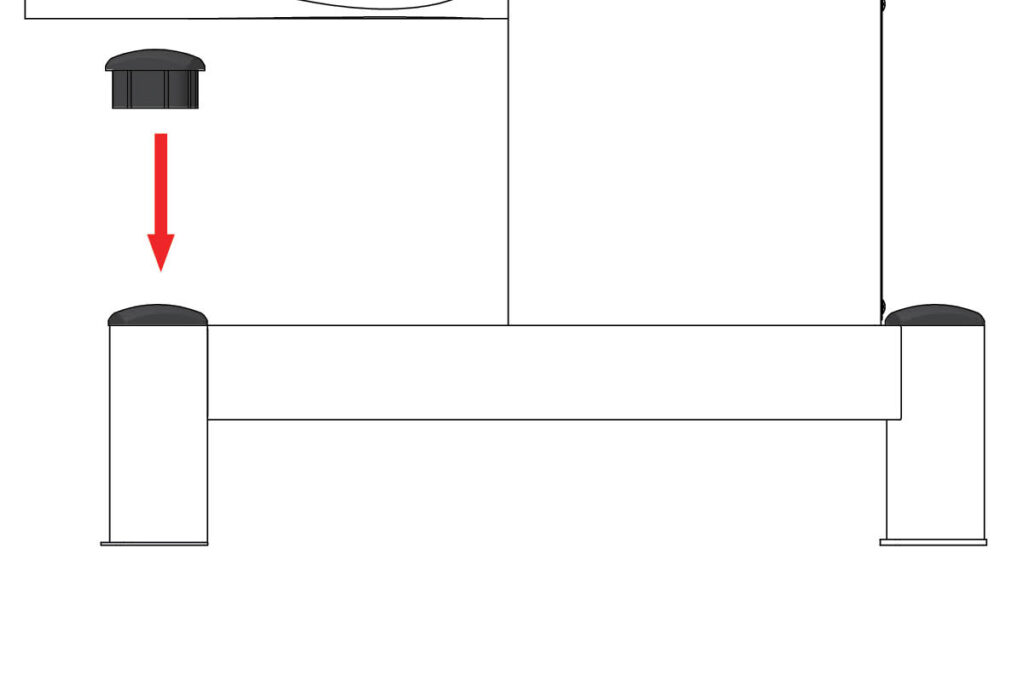

New version

Affected parts:

Affected sales products:

The previous products AR31-213ZB and AR61-213ZB are replaced by AR31-212.1ZB as part of the standardization of the knee and and foot design, but all three numbers can be bought as spare parts.
